Product name:Pressure & Temperature Sensors
The product model:KYTMAP-YX

application:It can detect spray rail gas pressure, temperature, and the air intake manifold pressure. Sensors transmit the signal to ECU and the ECU setting the best air-fuel ratio to control gas injection time. This is for saving energy and emission reduction.


  • Details
  • Specifications
  • Product Diagram

Description

KYTMAP series of gas intake pressure sensors adopts the technology of the back pressure, can measure both pressure and temperature of the medium with excellent media compatibility(especially can withstand H2S in natural gas). And it has the characteristics of wide working temperature range, good stability and reliability.



Applications

Engineintake manifoldpressure and temperature detection

GasPressure - Temperature detection
Auxiliary intake air quantity and temperaturecalculation

Auxiliaryoverheating, boosterprotection

Auxiliaryhighlandcompensation



Features

◆Importedback pressure chip improve the  corrosion resistance(especially H2S);

◆Operating temperature -40℃ and 125℃

◆High precision and good stability

◆Anti-shock, anti-vibration, Good interchangeability at site



Application Description

It can detect spray rail gas pressure, temperature, and the air intake manifold pressure. Sensors transmit the signal to ECU and the ECU setting the best air-fuel ratio to control gas injection time. This is for saving energy and emission reduction.

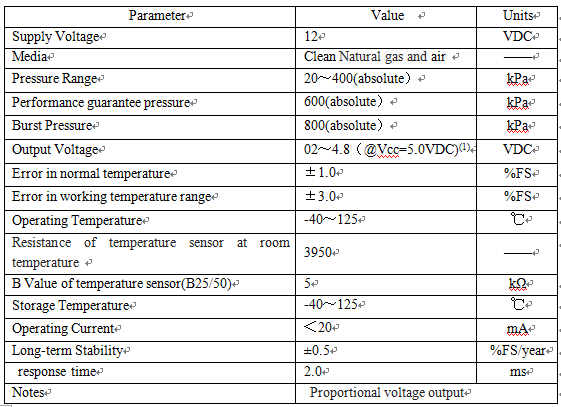

Specifications

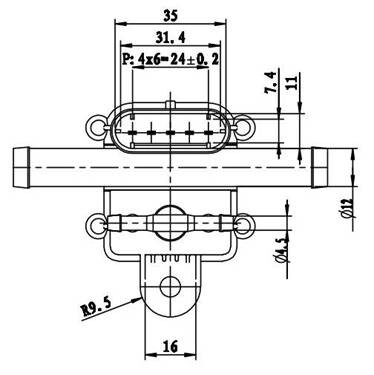

Product Diagram







Gross Weight:54g

Net Weight:41.5g
