application:High quality sensors, exquisite package technology and perfect assembly process ensure the products of high quality and excellent performance. The product is very convenient to install and can directly measure gas or liquid, especially suitable for the pipeline and differential pressure measurement, fume, fan equipment, etc.
Description
KYB18D change the pressure of measured medium into a standard electrical signal output by using the foreign famous brand pressure sensor with high accuracy and high stability, with high reliability back-end amplification circuit and processing circuit.
Applications
Industrial process pressure and flow measurement
Pipes and furnace pressure measurement
Petroleum, chemical industry
Dust in the field of environmental protection
Features
◆Gases and liquids can be measured，wide range of applications
◆Wide measurement range, high accuracy
◆High stability, high reliability
◆Overall compact, rugged structure
◆Customized available
Specifications
Parameter | Value |
Measure Media | liquids, gases or vaporscompatible with 304 stainless steel |
PressureRange | 0～1.7MPa (minimum 0～50KPa) |
Static Pressure | ≤10MPa |
Combine Accuracy | ± 0.25% FS, ± 0.5% FS |
Operating Voltage | 14～36VDC，standard 24VDC±5%，ripple< 1% |
Output | 4 ～20mA（2-wire） |
Medium Temperature | -10～70℃ |
Temperature Effect | ± 2.5% FS (0.25 level), ± 5.0% FS (0.5 level) |
Stability | ± 0.25% FS / year (0.25), ± 5.0% FS / year (0.5) |
Pressure Over-loaded | 2 X |
Application Description
High quality sensors, exquisite package technology and perfect assembly process ensure the products of high quality and excellent performance. The product is very convenient to install and can directly measure gas or liquid, especially suitable for the pipeline and differential pressure measurement, fume, fan equipment, etc.

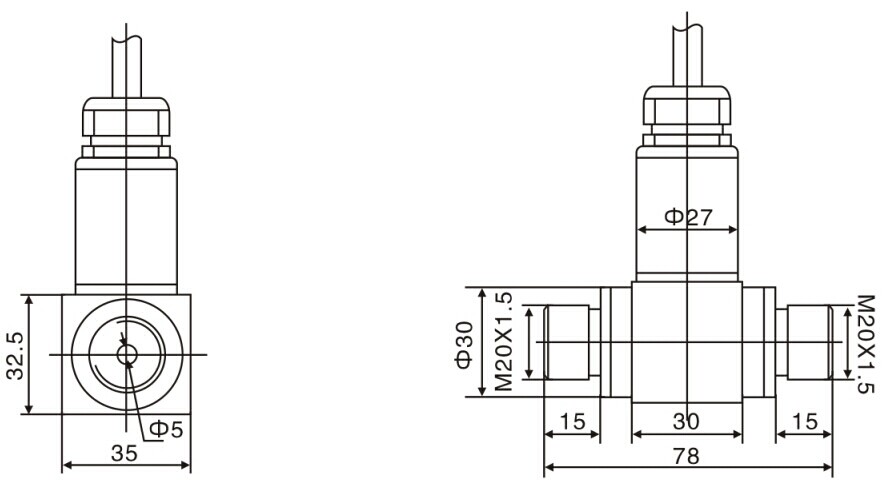

Product Diagram:
