Product name:Pressure Sensors
The product model:KYMAP-3B

application:KYMAP-2B/KYMAP-3B detects the spray rail gas pressure and intake manifold air pressure. The sensor signal is transmitted to the ECU, ECU control the optimum gas injection time through preset optimum air-fuel ratio to achieve the purpose of energy saving.


  • Details
  • Specifications

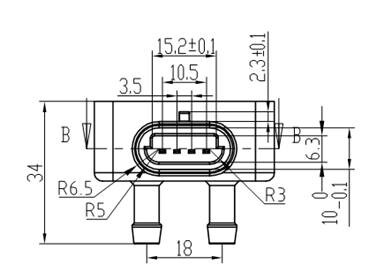

  • Product Diagram

Description

KYMAP series gas intake pressure sensors use the technology of “pressure from the back”, with excellent media compatibility, especially for corrosive gas of H2S in natural gas, wide working temperature, good stability and reliability.



Applications

Engineintake manifoldpressure detection

Gaspressure detection
Auxiliary intake air quantity calculation
Auxiliary overheating, booster protection
Auxiliary highland compensation



Features

◆Back pressure technology, excellent media compatibility, better anti-corrosive characteristics (especially for H2S)

◆Operating temperature -40℃and 125℃

◆High Accuracy, Good stability

◆Anti-shock, anti-vibration, Good interchangeability at site

Application Description

KYMAP-2B/KYMAP-3B detects the spray rail gas pressure and intake manifold air pressure. The sensor signal is transmitted to the ECU, ECU control the optimum gas injection time through preset optimum air-fuel ratio to achieve the purpose of energy saving.

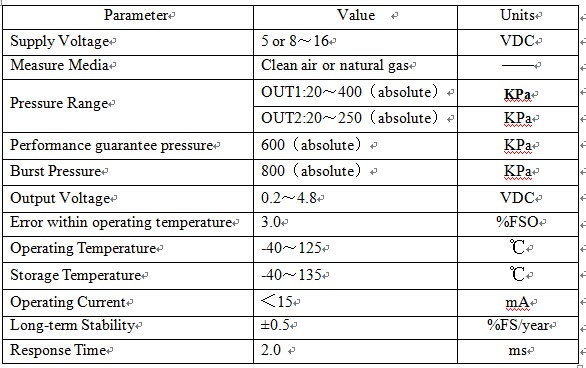

Specifications

How to Order:Based on parameters



Gross Weight:KYMAP-3B:34g
Net Weight:KYMAP-3B:44g
